Since it can easily be installed on servers an does not require a GPU, RapidCompact CLI
can also be conveniently used to generate images of 3D models. This is useful, for
example, when you have a large set of meshes and want to create thumbnail images. You
can also use RC to render a turntable-like image series, rotating around the
up-axis of a given mesh. Such an image series can then be used to display a pseudo-3D
view of a 3D model (for example, inside a Web page). Image generation (or
rendering) commands share the following common settings:
| Setting Name: |
rendering:imageWidth (similar:
rendering:imageHeight) |
| Setting Type: |
Integer Number |
| Valid Range: |
[1, 8192] |
| Default Value: |
1024 |
| Description: |
Specifies the width (similar: height) for
rendered images. |
| Setting Name: |
rendering:background |
| Setting Type: |
String |
| Valid Values: |
transparent, white, black, gradientGray |
| Default Value: |
transparent |
| Description: |
Specifies the background to be used when
rendering images. |
| Setting Name: |
rendering:showBackFaces |
| Setting Type: |
Flag |
| Valid Values: |
true, false |
| Default Value: |
false |
| Description: |
Specifies whether faces with a surface normal
pointing away from the viewer ("backfaces") should be rendered. |
If a model should be rendered using a certain camera position and orientation, the
following command set_view_matrix can be used:
| Command: |
set_view_matrix |
| Shorthand: |
v |
| Argument: |
matrix in format "m00 m01 m02 m03 m10 m11 m12
m13 m20 m21 m22 m23" |
| Example: |
rpdx -i foo.obj -v "1 0 0 0 0 1 0 0 0 0 1
-1000" --render_image foo.png |
| Description: |
Sets the view matrix, used for rendering, to
the given matrix. The 3x4 matrix in row major format must be specified as a
single, whitespace-separated string, wrapped in quotes. |
If no view matrix is explicitly set, the model is rendered with the camera fitting
to the scene, looking along the negative z-axis (if the system was not rotated). The
commands for generating images are shown in the following.

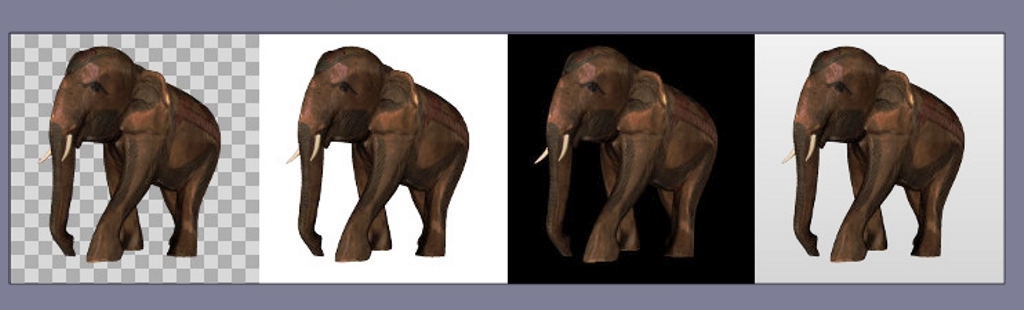

Images generated with different backgrounds. Background names from left to
right: "transparent", "white", "black", "gradientGray".
| Command: |
render_image |
| Shorthand: |
none |
| Argument: |
filename of the resulting image file |
| Example: |
rpdx -i myMesh.ply --render_image
mesh.png |
| Description: |
Renders an image of a mesh and stores it to the
given image file. Supported image formats are PNG and JPEG. |
| Command: |
render_turntable |
| Argument 1: |
directory for images |
| Argument 2: |
number of views / images to render |
| Example: |
rpdx -i foo.obj --render_turntable meshTT
32 |
| Description: |
Renders a turntable-like image series by
centering the asset and rotating the view around the up-axis. The resulting
images will be stored in PNG format. |
